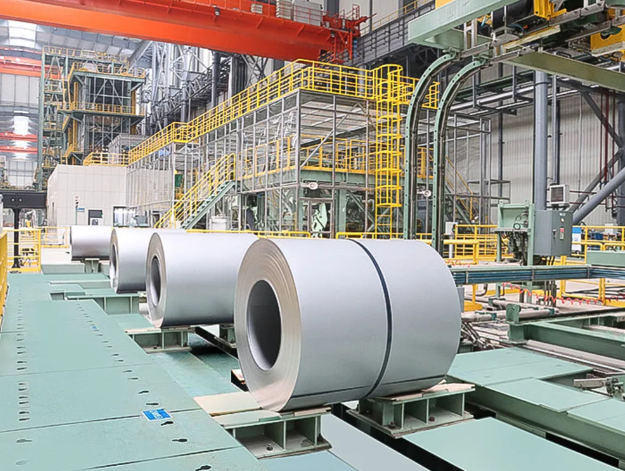

Galvanized Steel Coil Quality Inspection: 8 Tests Every Buyer Should Request

A galvanized steel coil may look acceptable but still contain problems that affect stamping, roll forming, welding, painting, or corrosion resistance. Incorrect thickness, insufficient zinc coating, unstable mechanical properties, and poor adhesion can all increase rejection rates after delivery.

Buyers should define inspection requirements before ordering. The specification should identify the standard, steel grade, coating designation, dimensions, surface finish, treatment, and intended application. The following eight tests provide a practical foundation for evaluating galvanized steel coil quality.

Quick Inspection Checklist

The exact limits and sampling frequency should reflect the final product. Buyers should request measured results and clear acceptance criteria, not simply a “passed inspection” statement.

1. Visual Surface Inspection

Visual inspection should be performed under consistent lighting on both sides of representative samples and the accessible coil surface.

Common defects include:

• Scratches, dents, and roll marks

• Bare or uncoated spots

• Zinc particles and surface inclusions

• Uneven spangle or color

• Oil stains and fingerprints

• White rust or dark oxidation

• Edge damage or poor coil winding

A hidden bracket may tolerate minor cosmetic variation, while automotive parts, appliance panels, and painted door skins require stricter surface quality. Record defects by type, size, location, and frequency. Photographs should include scale and the coil identification number.

2. Thickness, Width, and Dimensional Inspection

Dimensional errors can cause feeding problems, inaccurate components, incorrect product weight, and disputes over delivered quantity.

Measure thickness at several positions across the strip, including the center and areas near both edges. The method must match the applicable specification because the reported thickness normally includes the metallic coating.

Also verify:

• Coil width and tolerance

• Edge condition and burr height

• Camber and flatness

• Coil inner and outer diameter

• Coil weight

• Telescoping and winding alignment

The inspection plan should define the number of readings, measurement positions, instrument accuracy, and allowable tolerances.

3. Chemical Composition and Grade Verification

Chemical composition affects strength, ductility, weldability, and forming performance. The mill test certificate should be linked to the heat and coil numbers.

Depending on the grade, the report may include carbon, manganese, phosphorus, sulfur, silicon, titanium, and other controlled elements. Laboratory verification can use optical emission spectrometry or another recognized method when independent confirmation is required.

Check that the chemistry complies with the ordered standard, the certificate matches the physical coil labels, and no grade substitution has been made without approval. Chemical analysis alone does not confirm the complete grade; mechanical properties and coating designation must also comply.

4. Mechanical Property Testing

Tensile testing normally measures:

• Yield strength

• Tensile strength

• Elongation after fracture

For drawing grades, the plastic strain ratio, or r-value, and strain-hardening exponent, or n-value, may also be important. They help evaluate resistance to thinning and the distribution of strain during stamping.

Specimen direction, thickness range, gauge length, and test method can affect the reported values. The report should follow the same standard stated in the purchase order.

A coil that is too strong may be difficult to form, while insufficient strength can affect the finished component. Evaluate the required property range instead of assuming that a higher value is always better.

5. Zinc Coating Mass or Thickness Test

Zinc coating mass is a key indicator of galvanized steel quality. If it is below specification, corrosion protection may be reduced even when the surface looks normal.

Designations such as Z275 under an EN-based specification and G90 under an ASTM-based specification use different systems. The order must state the applicable standard.

Common methods include:

• Gravimetric testing: The coating is removed from a sample of known area, and mass loss is used to calculate coating mass.

• Magnetic or electronic measurement: A calibrated gauge provides fast, non-destructive readings.

Test multiple locations across the strip. Confirm whether the requirement applies to total coating mass on both sides, a single-side value, or a differential coating.

Rosen supplies hot-dip galvanized steel in customized grades, dimensions, coating weights, and surface treatments. Providing the final application helps match the coating specification to forming and corrosion requirements.

6. Coating Adhesion and Bend Test

A zinc coating must remain attached during bending, roll forming, stamping, and assembly. Poor adhesion can cause peeling, flaking, or exposed base steel.

A bend or T-bend test deforms a sample around a specified radius or number of sheet thicknesses. The outside of the bend is examined for coating fracture, delamination, or pickoff. Tape may also be applied after bending when required.

The order should define the bend angle or rating, sample direction, examination method, and allowable coating loss. Inspectors must distinguish coating failure from fracture of the steel substrate. For galvannealed material, powdering criteria may need to be agreed separately.

7. Surface Roughness and Finish Test

Surface roughness influences lubricant retention, stamping friction, paint appearance, coating adhesion, and bonding.

A profilometer can measure average roughness and other required parameters. Automotive, appliance, furniture, and door-panel buyers may require additional controls for visible surfaces.

The correct finish depends on the next process:

• Stamping requires controlled friction

• Painting requires a clean, consistent surface

• Visible panels require limited waviness

• Bonding requires compatible surface treatment

Confirm whether the coil is unoiled, oiled, passivated, anti-fingerprint treated, phosphated, or supplied with another specified finish.

8. Corrosion Resistance Test

Accelerated corrosion testing can evaluate the zinc coating, passivation, or additional surface treatment. Neutral salt spray testing is commonly requested, but the method, exposure time, and acceptance criteria must be written into the order.

Inspectors may record time to white rust or red rust, affected surface area, staining, blistering, and coating breakdown.

Salt spray hours are not a direct prediction of outdoor service life. Actual corrosion depends on humidity, temperature, salt, pollutants, installation, and maintenance. The test is most useful for comparing controlled samples or verifying a specified treatment.

Testing may be performed by product type or production lot rather than on every coil. Buyers serving automotive, coastal, appliance, or high-humidity applications should agree on an appropriate verification plan.

What Should Be Included in the Inspection Report?

A useful pre-shipment report should contain:

• Purchase order, heat number, and coil number

• Grade, coating designation, and applicable standard

• Sampling locations and frequency

• Test methods and instruments

• Actual measured values and acceptance limits

• Surface photographs

• Test date and inspector

• Mill test certificate or agreed inspection document

Avoid reports that only state “pass.” Actual values allow buyers to review consistency across coils and shipments.

Sampling should be agreed before production. One result may not represent a multi-coil shipment. Critical orders may require results for each mother coil, while standard commercial orders may use a lot-based plan.

Make the Inspection Plan Part of the Purchase Order

Quality inspection works best when requirements are defined before production. State the grade, dimensions, coating mass, surface quality, mechanical limits, test standard, sampling frequency, and required documents in the purchase order. Ask the supplier to report actual values for critical characteristics and agree on how nonconforming material will be handled. This turns inspection into a practical system for preventing production losses and receiving galvanized steel coil that matches the intended application.
