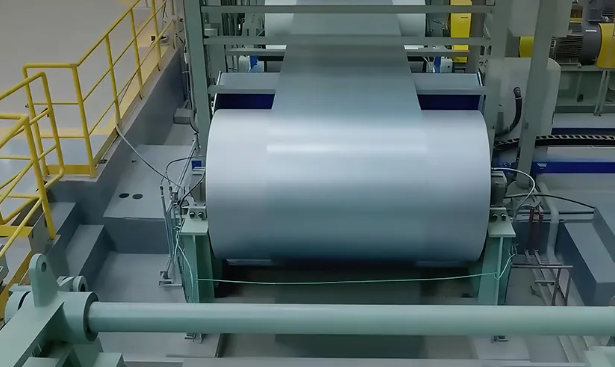

Galvanized Steel Coating Weight Explained: Z60, Z120, Z180 and Z275

The zinc coating is a key specification when purchasing galvanized steel coil. It affects corrosion resistance, forming, welding, product weight, and price. However, buyers sometimes request “galvanized steel” without stating the coating mass or assume that Z60, Z120, Z180, and Z275 describe the steel sheet thickness.

These numbers refer to the zinc applied to the steel—not the base steel thickness. Choosing the correct coating requires an understanding of the designation, service environment, and downstream process.

What Does the Z Number Mean?

For a pure zinc hot-dip coating, Z identifies the coating type. The number normally represents the total coating mass on both sides of the sheet in grams per square meter.

Z275, for example, indicates 275 g/m² across both surfaces. If evenly distributed, each side carries approximately half.

*Thickness values are guidance estimates for a nearly pure zinc coating with approximately equal distribution. Actual values vary with coating composition and measurement method.

The number does not indicate coating thickness in micrometers. Z275 is typically about 20 µm per surface, not 275 µm.

Are All Four EN 10346 Coating Classes?

Buyers should distinguish between formal standard designations and commercial descriptions.

Commonly published EN 10346 pure-zinc classes include Z100, Z140, Z180, Z200, Z225, Z275, Z350, Z450, and Z600. Z180 and Z275 are recognized EN coating designations.

Z60 and Z120 may be offered as custom coating weights or commercial shorthand, but they should not automatically be treated as standard EN 10346 classes. If either is required, the order should state:

• Whether the value is nominal or minimum

• Whether it covers both sides combined

• Required distribution between the two sides

• Spot and average acceptance limits

• Test method and sampling frequency

Without these details, two suppliers may quote “Z120” using different tolerances.

Z60: For Protected Indoor Applications

Z60 uses approximately 60 g/m² of zinc across both sides. It is generally considered for dry indoor or short-service applications without direct exposure to rain, salt, condensation, or industrial pollutants.

Possible uses include hidden appliance components, indoor cabinets, dry-storage shelving, painted parts, and cost-sensitive fabricated products.

Z60 should not be selected by price alone. Scratches, cut edges, condensation, and poor storage can consume a light zinc layer quickly. Buyers must also confirm that the mill can supply this coating and agree on the minimum acceptable mass.

Z120: Light-to-Medium Protection

Z120 approximately doubles the zinc mass of Z60. It provides more protection while remaining suitable for bending, stamping, and painted applications.

It may be considered for indoor HVAC components, electrical enclosures, appliance housings, furniture, interior building panels, and components used in controlled-humidity environments.

Z120 can also act as the metallic base beneath paint, powder coating, or laminating. For unpainted outdoor use, it should be evaluated carefully. Frequent condensation, coastal air, fertilizer, chemicals, or standing water may require a heavier coating.

Z180: Balanced Protection and Processability

Z180 is a recognized coating class in EN-based product ranges. With approximately 13 µm of zinc per side, it offers a practical balance between corrosion resistance, formability, weldability, weight, and cost.

Typical applications include:

• Roofing and wall components in moderate environments

• Ventilation ducts

• General construction profiles

• Garage doors and steel door components

• Industrial cabinets and fabricated panels

Z180 is useful when Z120 provides too little protection but Z275 is unnecessary. It is close in mass to ASTM G60, although EN and ASTM acceptance rules are not identical.

For formed parts, verify coating adhesion after bending or stamping. A heavier zinc layer can experience greater stress at tight radii if the grade, tooling, or lubrication is unsuitable.

Z275: For Demanding Outdoor Service

Z275 is a widely recognized heavy coating for galvanized sheet and coil. Under EN-based specifications, it provides a minimum total coating mass of 275 g/m² in the triple-spot test and a typical thickness of about 20 µm per surface.

Common applications include exterior roofing and cladding, outdoor frames, agricultural buildings, solar mounting structures, transportation components, and industrial facilities.

Because zinc protects steel sacrificially, a thicker coating generally provides longer protection under comparable exposure. Z275 nevertheless cannot resist every environment. Coastal salt, acidic chemicals, poor drainage, or continuous wetness may require paint or another coating system.

Rosen supplies hot-dip galvanized steel with double-sided coating weights within its listed range of 80–275 g/m². Buyers can also specify forming grade, thickness, width, surface structure, passivation, oiling, and other treatments.

Does More Zinc Always Mean Better Steel?

A heavier coating generally improves corrosion protection, but it also affects production.

• Forming: Thicker coatings may increase friction, coating pickup, or surface marking during severe stamping.

• Welding: More zinc can influence resistance-welding settings and electrode life.

• Appearance: Visible painted panels may prioritize smoothness and controlled texture.

• Cost and weight: More zinc increases material cost and coil weight.

Specifying Z275 for a dry indoor component may provide little practical return. The target should be the lowest coating mass that delivers the required service life with an appropriate safety margin.

How Should Buyers Select a Coating Weight?

Exposure Environment

Identify whether the part will be indoors, outdoors, under cover, frequently wet, coastal, agricultural, or exposed to industrial pollution.

Expected Service Life

A short-life indoor product and a long-life exterior structure should not use the same protection strategy.

Additional Surface Protection

Paint, powder coating, passivation, oiling, or anti-fingerprint treatment can change the required zinc mass. Confirm compatibility with later processing.

Forming and Welding

Deep drawing, tight bending, roll forming, and spot welding may affect the practical coating choice. Trial production is advisable for demanding parts.

Maintenance Access

A component that can be inspected and repainted may use a different coating from one installed inside a roof, wall, or remote structure.

How Is Coating Weight Verified?

A gravimetric test uses a sample of known area. The sample is weighed, the zinc is chemically removed, and it is weighed again. The mass loss determines the coating weight.

Non-destructive magnetic or electronic gauges are useful for production control, but the agreed laboratory method should govern acceptance disputes.

The report should show actual coating mass, sampling locations, average or triple-spot results, individual spot values, test method, coil number, and acceptance limit. A statement such as “Z275 passed” without measured values provides limited evidence.

EN Z and ASTM G Designations Are Different

EN coating numbers are expressed in g/m², while ASTM G designations are based on oz/ft². ASTM G90 is approximately 275 g/m² and is often compared with Z275. G60 is approximately 180 g/m² and is often compared with Z180.

These are mass conversions, not automatic specification substitutions. Spot limits, test procedures, and tolerances may differ. The purchase order must name one governing standard.

Specify the Coating, Not Just “Galvanized Steel”

A complete inquiry should state the steel grade, standard, coating mass, minimum or nominal status, coating distribution, dimensions, surface finish, treatment, forming method, and service environment. Z60 may suit a protected indoor part, Z120 may support light-duty or painted applications, Z180 provides balanced general protection, and Z275 is better suited to demanding outdoor use. Providing these details allows Rosen to recommend a coating specification based on the actual product rather than quoting an undefined galvanized steel coil.
