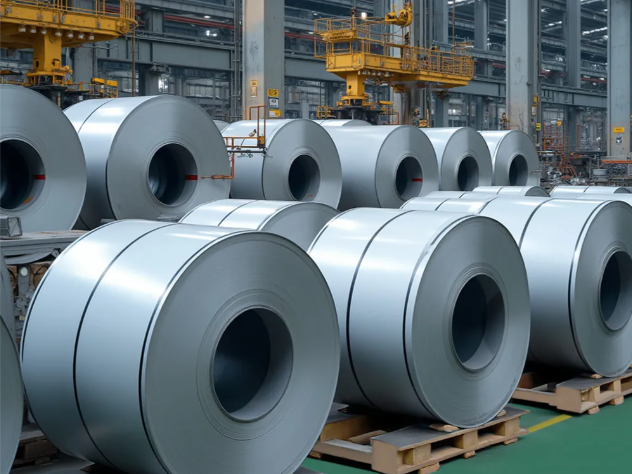

Common Surface Defects in Electro-Galvanized Steel Coil

Electro-galvanized steel coil is widely used for appliance panels, automotive electronics, electrical enclosures, precision hardware, and other components that require a smooth surface and accurate dimensions. Because these products often have visible or painted surfaces, even small defects can affect appearance, corrosion resistance, forming performance, and production efficiency.

Understanding the most common surface defects helps buyers establish clear quality requirements and avoid unnecessary stamping, painting, and assembly problems.

1. Scratches and Abrasion Marks

Scratches are among the most common defects found on electro-galvanized steel coil. They may occur during coiling, slitting, transportation, handling, stamping, or storage.

Minor scratches may only affect appearance, while deeper scratches can penetrate the zinc coating and expose the base steel. This increases the risk of rust, especially in humid environments or after forming.

Common causes include:

• Metal particles on rollers

• Improper coil handling

• Damaged packaging

• Contact between steel surfaces

• Dirty stamping dies

• Incorrect slitting equipment settings

Manufacturers should keep rollers, guides, and tooling clean. Buyers should also request protective packaging or surface film when the material will be used for visible panels.

2. White Rust

White rust appears as a white or grey powdery deposit on the zinc surface. It usually develops when electro-galvanized steel is exposed to moisture without sufficient air circulation.

Common situations include:

• Condensation inside the package

• Outdoor storage

• Water entering damaged packaging

• Rapid temperature changes

• Insufficient passivation or oiling

• Stacking wet steel sheets together

White rust may initially be a visual defect, but prolonged exposure can consume the zinc coating and reduce corrosion protection.

To prevent it, coils should be stored in a dry, ventilated warehouse. Buyers can also specify chrome-free passivation, oiling, or passivation combined with oiling according to the required storage period and downstream process.

3. Black Spots and Discoloration

Black spots, dark stains, and uneven discoloration may develop because of contamination, chemical residue, oxidation, or improper surface treatment.

Possible causes include:

• Incomplete cleaning before electroplating

• Residual acid or alkaline solution

• Contaminated process water

• Uneven passivation

• Excessive storage time

• Exposure to chemicals or high humidity

• Contact with unsuitable packaging materials

Although some discoloration may not significantly affect mechanical performance, it can cause rejection when the steel is used for appliance panels, smart door lock panels, electronics housings, or decorative components.

Buyers should define whether the surface will be visible, painted, laminated, or hidden inside the finished product.

4. Uneven Zinc Coating

Electro-galvanized steel should have a controlled and uniform zinc layer. Uneven coating may appear as differences in color, gloss, texture, or corrosion performance across the coil width.

This defect can result from:

• Uneven current distribution

• Incorrect electrode positioning

• Unstable line speed

• Poor bath control

• Surface contamination

• Irregular steel strip shape

An uneven coating can create inconsistent painting, welding, and corrosion performance. It may be particularly problematic for precision parts that require controlled coating thickness.

Rosen’s electro-galvanized steel coil is produced through controlled electro-deposition, with coating options including equal double-sided, differential, and single-sided zinc layers. The product page also lists coating-thickness control within ±1 μm for precision applications.

5. Bare Spots and Pinholes

Bare spots are small areas where zinc has not properly covered the steel substrate. Pinholes are tiny interruptions in the coating that may not be easily visible without close inspection.

Typical causes include:

• Oil or grease remaining on the substrate

• Oxide scale

• Inadequate surface activation

• Foreign particles

• Air bubbles during deposition

• Electrical contact problems

These defects can become local corrosion points because the underlying steel has little or no zinc protection. They may also create visible marks after painting or powder coating.

Careful degreasing, cleaning, activation, and plating-bath control are necessary to reduce bare spots.

6. Peeling, Flaking and Blistering

A zinc coating should remain firmly attached during bending, stamping, drawing, and assembly. Peeling or flaking indicates poor adhesion between the zinc layer and the steel substrate.

Blistering appears as raised bubbles or swollen areas on the surface.

Possible causes include:

• Inadequate substrate cleaning

• Surface contamination

• Poor plating-bath control

• Excessive coating stress

• Incorrect forming conditions

• Steel grades unsuitable for severe drawing

• An excessively small bending radius

Buyers planning deep drawing or complex forming should select an appropriate steel grade, such as drawing, deep-drawing, or extra-deep-drawing electro-galvanized steel. Sample forming tests are advisable before bulk purchasing.

7. Edge Damage and Slitting Defects

Coil edges may develop burrs, cracks, waves, dents, or coating damage during slitting and recoiling.

Large burrs can affect stamping accuracy, damage tooling, create safety risks, and interfere with welding or assembly. Damaged edges are also more vulnerable to corrosion because cutting exposes the steel substrate.

Buyers should specify:

• Coil width tolerance

• Maximum allowable burr height

• Edge condition

• Slitting accuracy

• Telescoping tolerance

• Coil winding quality

Cut edges on finished components may require zinc-rich primer, paint, sealant, or another suitable protective treatment.

8. Oil Stains and Fingerprints

Oiling provides temporary corrosion protection, but excessive or uneven oil can create stains and interfere with painting, bonding, or welding.

Fingerprints may also leave salts, moisture, or grease on an untreated zinc surface. Over time, these marks can develop into discoloration or local corrosion.

For visible components, buyers can consider anti-fingerprint surface treatments. Rosen lists several treatment options, including chrome-free passivation, fingerprint-resistant coatings, phosphating, oiling, conductivity-enhancing treatments, and self-lubricating surfaces.

How Buyers Should Inspect Electro-Galvanized Steel Coil

Inspection should be based on the final application rather than appearance alone. A practical quality check may include:

• Visual inspection under consistent lighting

• Zinc coating mass or thickness measurement

• Coating adhesion testing

• Surface roughness testing

• Coil thickness and width measurement

• Burr and edge inspection

• Forming or bending tests

• Paint adhesion testing

• Corrosion or salt-spray testing

Buyers should also confirm which defects are acceptable, repairable, or prohibited. Surface requirements for hidden brackets will be different from those for exposed appliance or electronic panels.

Conclusion

Common electro-galvanized steel coil defects include scratches, white rust, discoloration, uneven coating, bare spots, peeling, edge damage, and oil stains. These problems may originate during electroplating, finishing, slitting, packaging, transportation, storage, or downstream fabrication.

Providing clear requirements for surface grade, coating mass, passivation, oiling, edge condition, packaging, and final application helps suppliers recommend the correct material. Proper inspection and storage can also reduce rejection rates and protect the smooth, uniform surface that makes electro-galvanized steel valuable for precision manufacturing.
